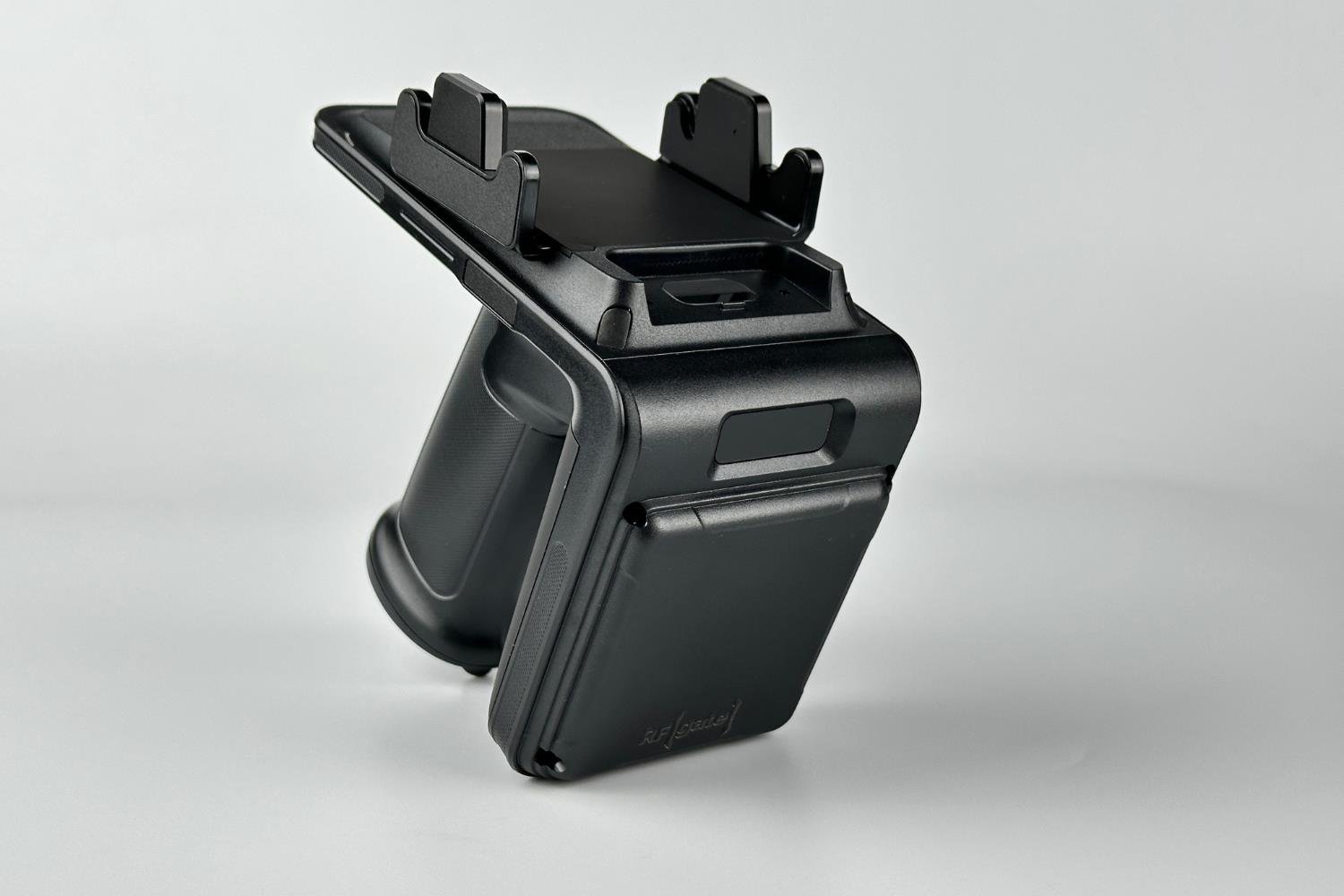

Mil 910 RFID Handheld Terminal
Mil 910 RFID Handheld Terminal is an enterprise-grade reader designed for projects requiring high-speed reading performance. With its aesthetic and ergonomic housing design, industrial build, and high-performance reading capabilities, the Mil910 meets the demands of your projects effectively. When paired with Android/iOS-based smartphones or terminals, it can easily be transformed into a professional data collection device. It features strong UHF read/write capability and provides a reading distance of over 31 meters outdoors. The RFID reader is comfortable to hold and easily detachable.
Specifications
- RFGate has achieved the highest levels of read and write performance with the EPC C1 GEN2 / ISO18000-6C protocol.
- Operates in the 920–925 MHz / 902–928 MHz / 865–868 MHz frequency ranges.
- RFGate Mil910 can achieve a reading distance of 31 meters outdoors with the appropriate tags and antenna.
- Dimensions: 160 x 82 x 129 mm, Weight: 438 g
- Operating temperature: -20 °C to +50 °C
Barcode Scanning
2D Imager Scanner: SE2707
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2/5, Discrete 2/5, Chinese 2/5, Codabar, MSI, RSS, etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: This feature is optional.
Usage Areas
Mil 910 RFID Handheld Terminal can be used in power patrol inspection, apparel cycle count, warehousing, asset management, fleet management, finance, and more. It is suitable for areas that require tracking of materials and objects.
Complete your projects quickly and reliably with UHF RFID readers from RFGate.
| Feature |
Description |
| Protocol |
EPC C1 GEN2 / ISO18000-6C |
| Operating Frequency |
920–925 MHz / 902–928 MHz / 865–868 MHz |
| Maximum Reading Distance |
25–31 meters (ranges depend on tags and environment) |
| Power |
Battery: 5200 mAh removable battery
Standby: More than 70 hours (with Bluetooth connected)
Continuous Use: Up to 2.5 hours (400 tag reads)
Charging Time: 4–5 hours (via standard adapter and USB cable) |
| Antenna |
Circular Polarized Antenna (4dBi) |
| SDK |
Android 12.0 |
| Dimensions |
160 x 82 x 129 mm |
| Weight |
438 g |
| Operating Temperature |
-20 °C to +60 °C |
Not suitable for direct use by end users without detailed technical knowledge or hardware expertise.
Blog Post
RFID handheld terminals are categorized into LF, HF, UHF. They can be compatible with Android and iOS devices. These terminals can read different types of tags and transmit collected data. Depending on the use case, features such as RAM, memory, reading range, and reading duration may vary. Handheld terminals minimize human errors and reduce the stress during inventory operations.
What Are the Benefits of RFID Handheld Terminals?
RFID handheld terminals increase business productivity by reducing the need for manual tracking and streamlining data and asset handling. One of their major benefits is time-saving and fast, accurate inventory counting. They also support wireless business solutions and can operate at high speed and efficiency across large areas. These devices are widely used in warehouses and automation systems, transmitting collected data to central systems. Some terminals even have features like photo capture and internet access. They help keep accurate stock records during audits.
Where Are RFID Handheld Terminals Used?
RFID handheld terminals are widely used in libraries, textiles, manufacturing, logistics, jewelry, field sales, asset tracking, warehouses, logistics, service and healthcare sectors. The only requirement is RFID tags, which come in various categories and can be matched with the respective terminal.
Examples of RFID Handheld Terminals
Here are some of the top-performing handheld terminals specially designed by RFGate:
- RFGate Mil900 UHF Mobile RFID Reader
- RFGate RD 26 UHF Mobile RFID Reader
- RFGate RGM88 UHF Mobile RFID Reader
