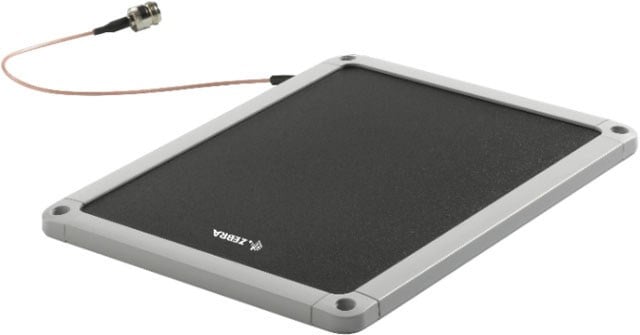

Zebra AN610 RFID Antenna

Zebra AN610 RFID Antenna (AN610-SCL71128EU)

Price : $380.00  + VAT

The Zebra AN610 RFID Antenna, with its sleek and compact design, is an ideal solution for indoor RFID applications. Measuring 285 x 214 x 12 mm, the antenna operates within the European frequency range (865–868 MHz) and the US range (902–928 MHz). The AN610 delivers high performance in applications such as retail, office environments, and light industrial settings.

Zebra AN610 RFID Antenna









PHYSICAL PROPERTIES
Dimensions 285 mm x 214 mm x 12 mm / 10.8 in x 8.5 in x 0.3 in.
Connector N-Type
Weight 1.3 lb / 0.6 kg
Case / Materials Kydex Cased Aluminium
Frequency Ranges AB: 865-868 MHz
US 902-928 MHz
VSWR (Return Loss) 1.4:1
Gain 5.0 dBic
Front-to-Back Ratio 18 dB
3dB Beamwidth 80° in both planes
Max. Power 6 Watt
Axial Ratio < 2 dB
Operating Temperature -20° to +55°C / -4° to +131°F
Storage Temperature -30° to +65°C / -22° to +149°F
IP Rating IP54
Vibration IEC 68-2-6 (10 to 150 Hz, 0.5 g) (Random Vibration)
Humidity IEC 68-2-30 (-13°F to 104°F, -25°C to 40°C)
