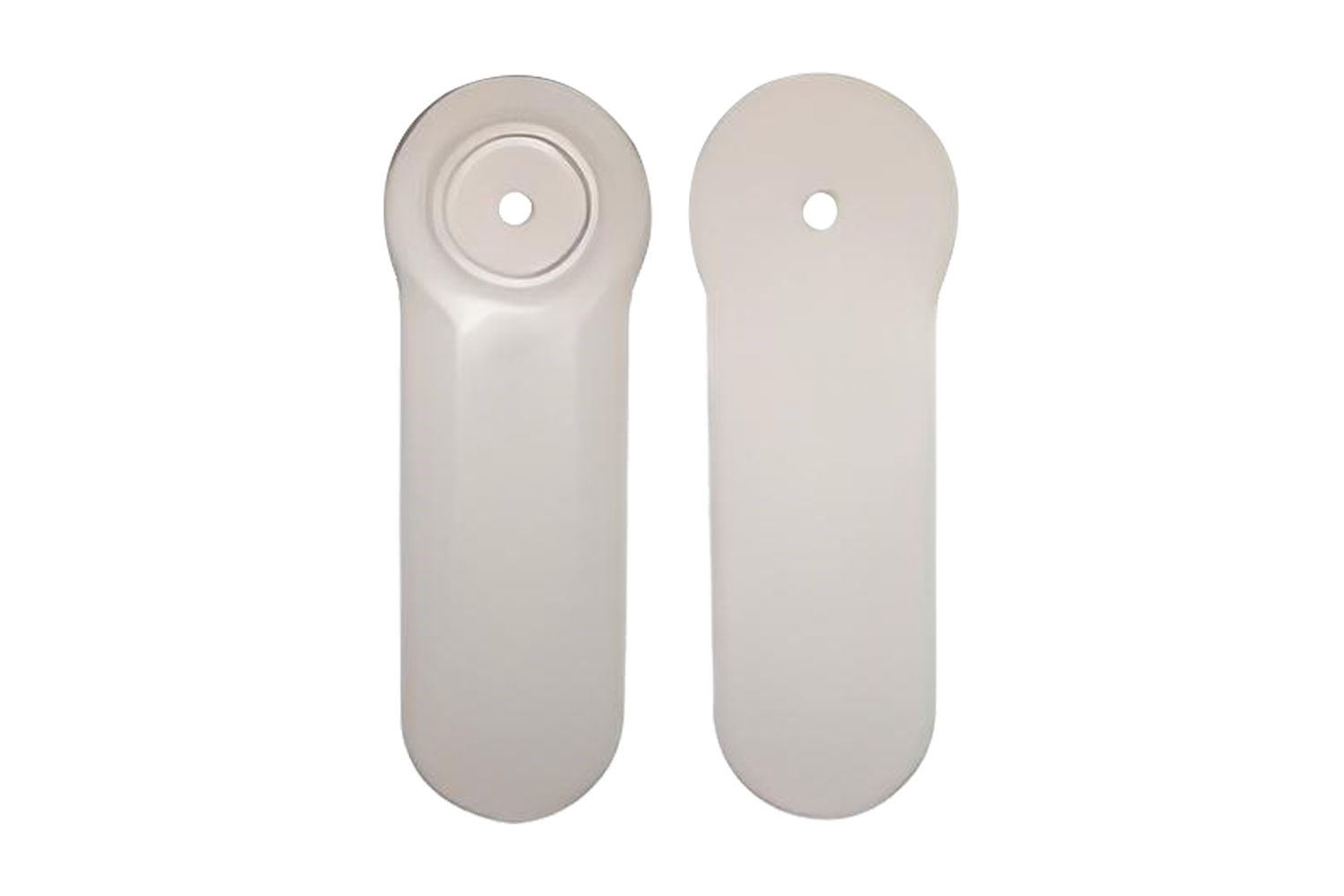

TR 2273 Hard Surface RFID Tag
Areas of Use
TR 2273 is an rfid retail tag made of ABS plastic suitable for use in retail and clothing industry.
RFID Retailing Tag TR2273
This tag is RFID-based with good appearance and can be used with various EAS-based tags, realising the combination of RFID and EAS. The smart tag is in separate design and applied independently or together with other pins.
- Ultra-thin and stylish appearance
- Combined with various EAS-based tags.
- It is combined with ordinary concepts to realise the RFID function and reduce costs.
- This label can be used separately without pins.
| Physical Properties |
| Size (mm/inç): |
26.8×73.7×4.5mm (1.06'' ×2.90''×0.02'' ) |
| Conservation: |
ABS |
| Colour: |
Light grey or customized |
| Printing |
Customised printing or laser engraved serial number |
| Assembly path: |
Lollypop etiketleri ile EAS tabanlı etiketler, EAS tabanlı etiketler, pinler ve kablo kullanılabilir. |
| Quality Assurance: |
100% Performance Test |
| Electrical Properties |
| Protocol: |
ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Operating Frequency: |
865 - 868MHz/902-928MHz |
| Integrated Circuit [IC]: |
IC |
| EPC Memory: |
96 Bits |
| User Memory: |
512 Bits |
| Unique TID: |
96 Bits |
| Access Password: |
32 Bits |
| Kill Password: |
32 Bits |
| RFID Reading Range: |
5m'ye kadar (Fixed Reader
güç - 27dbm) |
| Expected read cycles: |
100.000 loop |
| Data Retention |
10 Years |
| Packaging Information |
| Packaging format: |
Cardboard |
| Weight per piece: |
4.8g |
| Quantity per box: |
2000pcs |
| Package dimensions: |
405×305×200mm |
| Weight per pack: |
10.1kg |
| Quality assurance: |
100% performance tested
Tested 100 readings with out-of-tolerance fill markings
100% edit and modify |
| Environmental |
| Operating Temperature |
-20℃~60℃ |
| Working Environment Humidity |
30%~70% |
| Storage Temperature |
-20℃~60℃ |
| Storage Environment Humidity |
30%~70% |
| Sealing Protection |
IP54 |
| Certificate |
EPC Global |
Please contact for 5000 pieces and above RFID Label purchases.
Dear customers, the RFID tags you have examined are not coded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.
Blog Post
Advancements in Car Parking Systems: RFID & Number Plate Recognition
Car parking systems have significantly evolved, leveraging technologies like number plate recognition and RFID to streamline vehicle management in increasingly congested urban areas.
Number Plate Identification System
This system employs Optical Character Recognition (OCR) to read vehicle number plates, allowing for automatic access control of registered vehicles. It enhances security by verifying license plates against a pre-approved vehicle database, ensuring only authorized vehicles can enter.
RFID Car Parking System
Radio-Frequency Identification (RFID) enables hands-free vehicle identification using electromagnetic fields. It facilitates rapid vehicle entry and exit, reducing traffic congestion and optimizing parking space usage. With no need for physical interaction, RFID technology minimizes delays and contributes to lower emissions by reducing idle times and improving overall traffic flow.
Advantages of Modern Car Parking Systems
These systems deliver real-time data, enabling operators to monitor parking availability and make informed decisions. Features such as cashless payment, automated entry/exit, and error-free operation enhance convenience for users. They replace outdated manual ticketing systems, reducing human errors and increasing efficiency.
Applications and Urban Impact
Cities around the world are adopting these technologies to improve traffic flow and modernize infrastructure. In densely populated areas, smart parking solutions represent a step toward more connected, intelligent urban environments. Features like mobile app integration provide real-time parking availability, guiding drivers to open spots and improving space utilization. Additionally, these systems increase municipal revenue and support better urban planning by freeing attendants to focus on more complex tasks.
Conclusion
Parking systems powered by number plate recognition and RFID are revolutionizing urban transportation. They offer a seamless, efficient, and environmentally friendly solution that aligns with the goals of smart city development. For cities striving for sustainability and modernization, implementing such technologies is not just beneficial—it’s essential.
