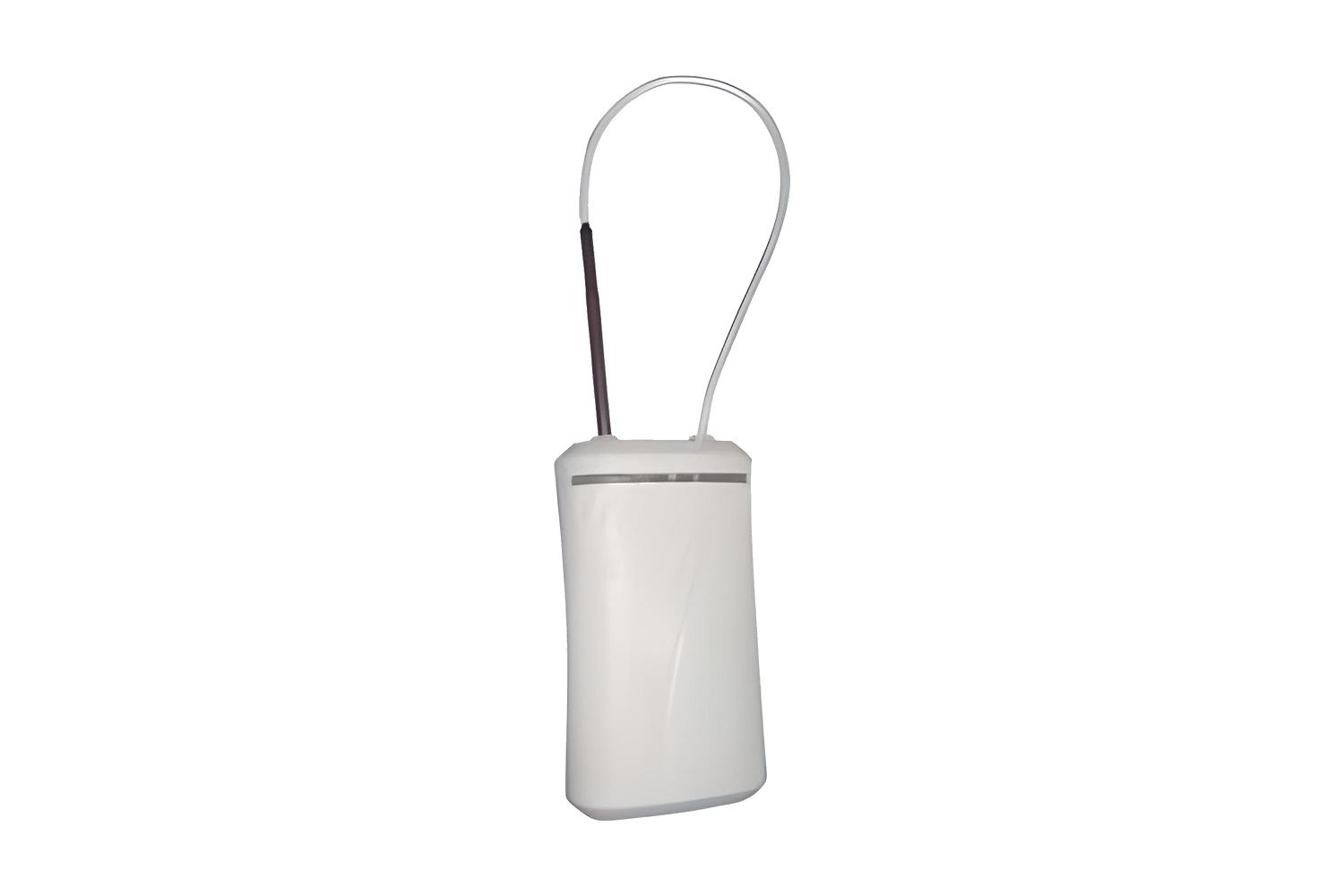

TAC3360 Rigid RFID Alarm Tag

TAC3360 Rigid RFID Alarm Tag (TAC4822001)

Brand : Markasız
Price : $2.90  + VAT

TAC3360 Rigid RFID Alarm Tag







Areas of Use;



- It is used for tracking and security purposes in the clothing, textile, retail sector.



Physical Properties
Size (mm/inch): 60×33.6×16mm
(2.36 '' × 1.32'' ×0.63 '' )
Cord Length (mm/inç): 120mm or customised
Lock Standard or Super
Colour White, Black or customised
Containment ABS
Quality Assurance 100% Performance Test

Electrical Properties
Protocol: ISO/IEC 18000-6C & EPC global Class 1 Gen 2
Operating Frequency: 860 - 960 MHz
Integrated Circuit [IC]: Semi Active IC
EPC Memory: 352 Bits
User Memory: 3072 Bits
Unique TID: 48 Bits
Access Password: 32 Bits
Kill Password: 32 Bits
RFID Reading Range: 5 m'ye kadar(ABD), 5 m'ye kadar(AB)
Sabit Okuyucu gücü - 27dbm
Expected read cycles: 100.000 döngü
Data Retention 10 yıl

Packaging Information
Packaging Method Cardboard
Weight Per Piece 22.8g
Weight Per Piece 50 Adet
Box Dimensions 405×305×200mm
Weight Per Box 1.1 kg
Quality assurance: 100% performance tested
100% Tested reading with out-of-tolerance filling
100% edit and modify

Environmental
Operating Temperature: -20℃~80℃
Working Environment Humidity: 50%~55%
Storage Temperature: -40℃~85℃
Storage Environment Humidity: 50%~55%
IP Value IP54
Extended Lifespan 3 Yıl
Certificate EPC Global





For RFID Label purchases of 5000 pieces and above get in touch.

Dear customers, the RFID tags you have examined are not coded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.





Blog Post





RFID Application in the Textile Industry

RFID helps accurately identify product types, sizes, and quantities in the textile and clothing industry. It is widely used by wholesalers, retailers, clothing service providers, and companies cleaning hospital or hotel linens. Brand manufacturers also use sewable RFID tags to authenticate original products.



Benefits of RFID in the Textile Industry

RFID increases competitiveness, prevents theft, enables custom presentation for customers, and allows close monitoring to solve issues and improve transportation efficiency. Active RFID systems boost productivity in merchandising. They track how long a product is examined and whether it is purchased. Returned products are easily detected. Product data like sales date and price can be stored on the label and accessed instantly.



RFID vs. Barcode

RFID readers can scan multiple tags simultaneously, unlike barcodes which require one-by-one reading. RFID tags offer much larger memory and dynamic data storage. Active RFID tags have ranges up to 100 meters; passive tags up to 1 meter. Barcodes need direct optical contact and shorter read distances. RFID tags are more durable and longer-lasting than barcodes.



Challenges of RFID in the Textile Industry

Implementing RFID takes time: supplying and positioning readers, tagging items, coding, and software integration. It also costs more than other systems. However, once the cost is managed, RFID offers reliable performance.
