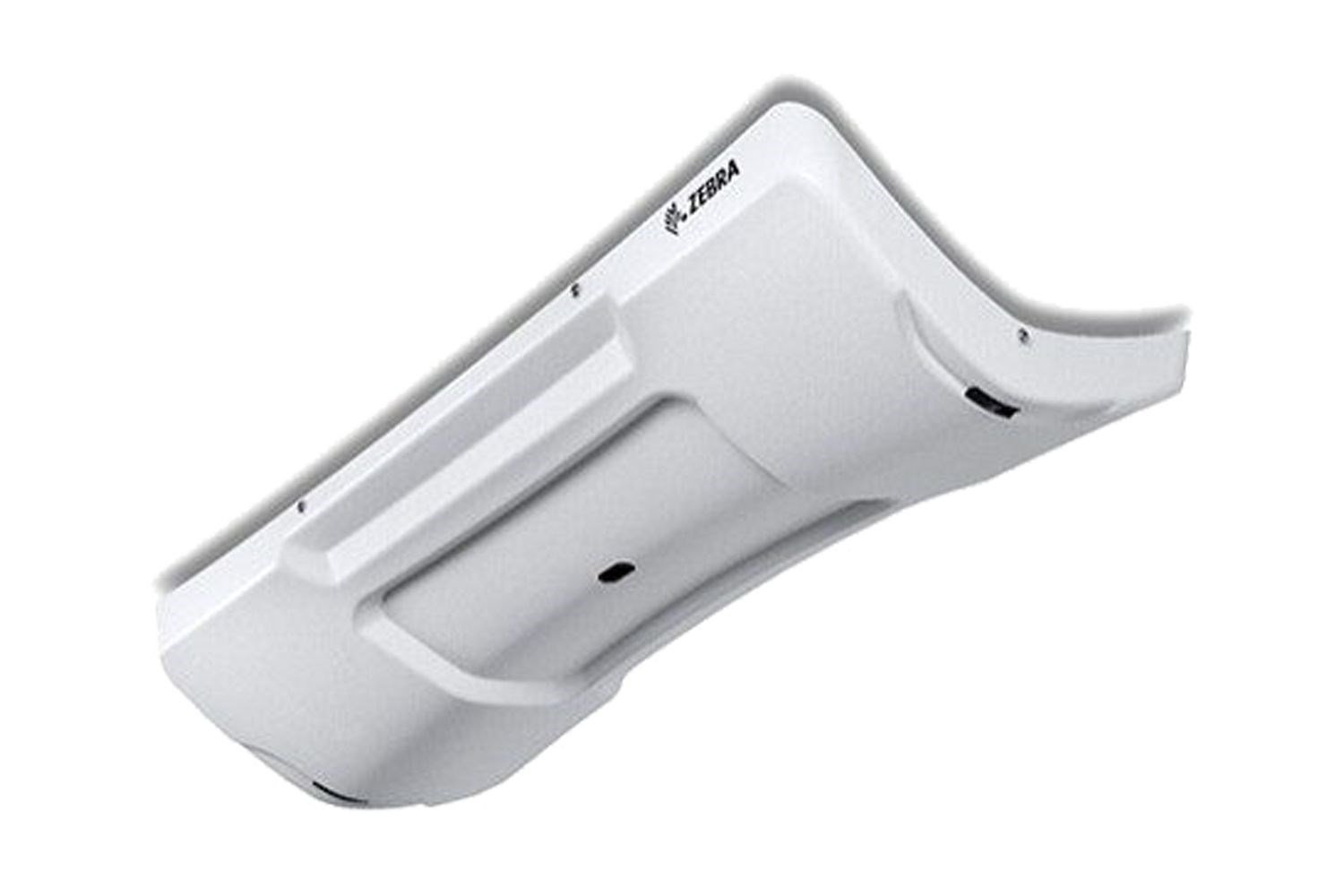

ST5500 CONVERSION READER

ST5500 CONVERSION READER (Z100)

Price : $213.00  + VAT

ST5500 CONVERSION READER









Physical Properties


Dimensions 47.0 in H x 22.0 in W x 9.0 in D
 (19.56 cm H x 14.99 cm W x 4.32 cm D)
Weight  23 lbs / 10.4 kg
Environment
Operating Temperature -4° to +131° F / -20° to +55° C
Storage Temperature -40° to +158° F / -40° to +70° C
Humidity 95% RH non-condensing
ESD +15 kV air discharge; 8 kV direct discharge
+8 kV indirect discharge
Power Requirements
Input Power 18W max (37-55 VDC POE)
Connection
Contact 10/100 BaseT Ethernet with POE (RJ45)
USB Client (Type B), USB Host Port (Type A)
General Purpose I/O 2 inputs, 3 outputs, optically isolated
(Terminal Block)
Power Supply POE, POE+ or +24V DC (UL Approved)
Supports operation from 12V-48VDC
Antenna Ports FX 7500-2: 2 monostatic ports
(Reverse Polarity TNC)
FX 7500-4: 4 monostatic ports
(Reverse Polarity TNC)
Hardware Operating System and Firmware Management
Processor Texas Instruments AM3505 (600 MHz)
Memory 512 MB Flash; 256 MB DRAM
Operating System Linux
Firmware Upgrade Web-based and remote firmware upgrade capabilities
Management Protocols RM 1.0.1 (via XML over HTTP/HTTPS and SNMP); RDMP
Network Services DHCP, HTTPS, FTPS, SFTP, SSH, HTTP, FTP, SNMP, NTP
Security Transport Layer Security Ver 1.2, FIPS-140
Air Protocols EPCglobal UHF Class 1 Gen2, ISO 18000-6C
Frequency (UHF Band) Global Reader: 902 MHz - 928 MHz (Supports countries within this band)
865 MHz - 868 MHz US only
Reader: 902 MHz - 928 MHz
Transmission Power Output 10 dBm - +31.5 dBm (POE+, 12V ~ 48V External DC, Universal 24V DC Power Supply); up to +30.0 dBm (POE)
Max. Receiving Sensitivity -82 dBm
IP Addressing Static and Dynamic
Host Interface Protocol: LLRP
API Support Main Computer Applications - .NET, C, and Java EMDK;
Embedded Applications - C and Java SDK







Blog Post



RFID Reader Modules: Enhancing Connectivity and Efficiency Across Industries

RFID reader modules have become crucial across industries, revolutionizing inventory management, access control, and supply chain logistics. These compact devices use radio waves to communicate with RFID tags, enabling seamless data exchange.

What Are RFID Reader Modules?
Reader modules serve as intermediaries between RFID tags and central systems. They typically include an antenna, a transceiver, and a controller to interpret and transmit tag data.

Key Features
Modern RFID readers support multiple frequencies, offer various read ranges and data speeds, and come in portable or fixed designs. They ensure easy integration with existing systems through protocols like UART, USB, and Ethernet, and are compatible with both passive and active RFID tags.

Applications

Retail: Real-time inventory
