RUTX11 Endüstriyel Hücresel Yönlendirici
RUTX11 Endüstriyel Hücresel Yönlendirici

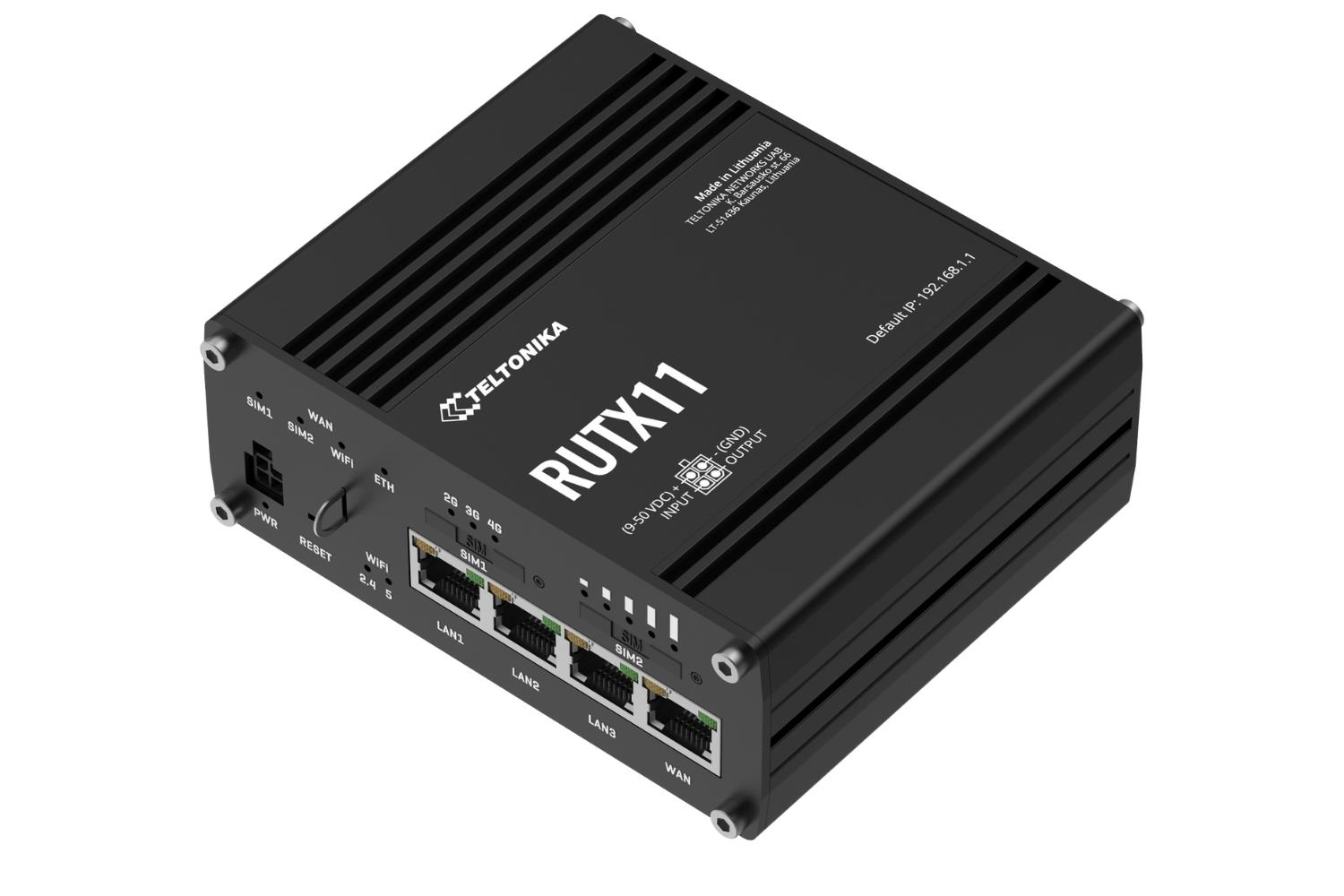

RUTX11 Industrial Cellular Router (RUTX11)

Brand : TELTONIKA
Price : $340.70  + VAT

This powerful LTE Cat 6 cellular router is designed for professional applications that require reliable, high-speed connectivity and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC Wi-Fi, and Bluetooth LE, and is EN 45545-2 certified, making it approved for use in passenger trains across Europe.

RUTX11 Industrial Cellular Router



RUTX11 is a professional LTE Cat 6 router designed to provide uninterrupted and high-speed connectivity under harsh conditions. With four Gigabit Ethernet ports, dual-band AC Wi-Fi, and integrated Bluetooth LE, it offers maximum flexibility for both fixed and mobile applications.

Its EN 45545-2 railway safety certification makes the RUTX11 ideal for passenger trains across Europe. This router is not just a network solution; it’s a reliable digital backbone for systems on the move.





Main Features;

4G LTE CAT 6: Cellular speeds up to 300 Mbps with Carrier Aggregation

DUAL SIM: With automatic failover, backup WAN, and other switching scenarios

WI-FI & BT: Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE

GIGABIT ETH: 4 x Gigabit Ethernet ports supporting up to 128 port/tag-based VLANs



Datasheet



Product Document



Feature Description
Mobile Module Up to 4G LTE Cat 6 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release Release 12
APN Automatic APN
Pass-Through Router assigns mobile WAN IP address to another device on the LAN
Data Rate USB 2.0
Applications Samba sharing, USB-to-serial
Supported Modes (MODBUS) Server, Client
Supported Connection Types (MODBUS) TCP, USB
Supported Modes Station, External Station
Supported Connection Types TCP, USB
Protocol HTTP(S), MQTT, Azure MQTT
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server via MQTT broker
Processor MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH Storage 16 MB serial NOR flash, 256 MB serial NAND flash
Connector 4-pin industrial DC power socket
Operating Temperature -40 °C to 75 °C
Ingress Protection Rating IP30
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 456 g
Operating Humidity 10% to 90% non-condensing





Dear customers, please feel free to contact us for more detailed information about the products you are reviewing.
