Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.

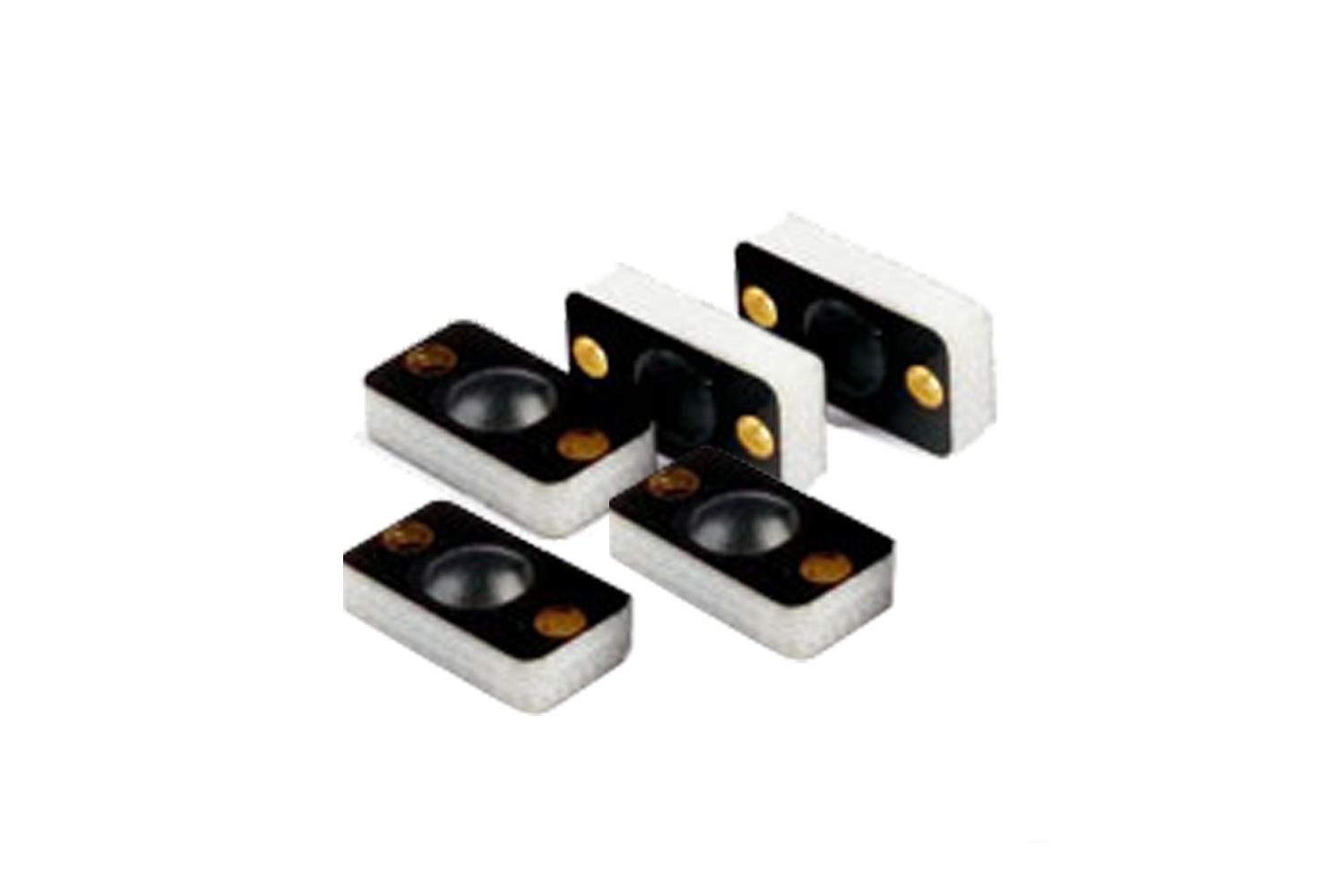

RFGate UHF Retail UHF Tracking Tag On Metal 13x7mm
RFGATE UHF Retail Metal On Metal Tracking Tag 13x7mm
Datasheet - RFGate UHF Retail UHF Tracking Tag 13x7mm
Areas of Use
RFGate UHF Tracking Tag on Metal in Retail is an rfid tag mainly suitable for use in retail, warehouse logistics management, IT asset management, inventory management, asset management, automotive component tracking, industrial manufacturing, etc. for theft prevention and tracking.
Features
- Powered by RFGate's Alien Higgs-3 chip with a volume-oriented structure.
- PCB Tag is designed on PCB/FR-4 base material, solving the problem that RFID tags cannot work well on metal objects.

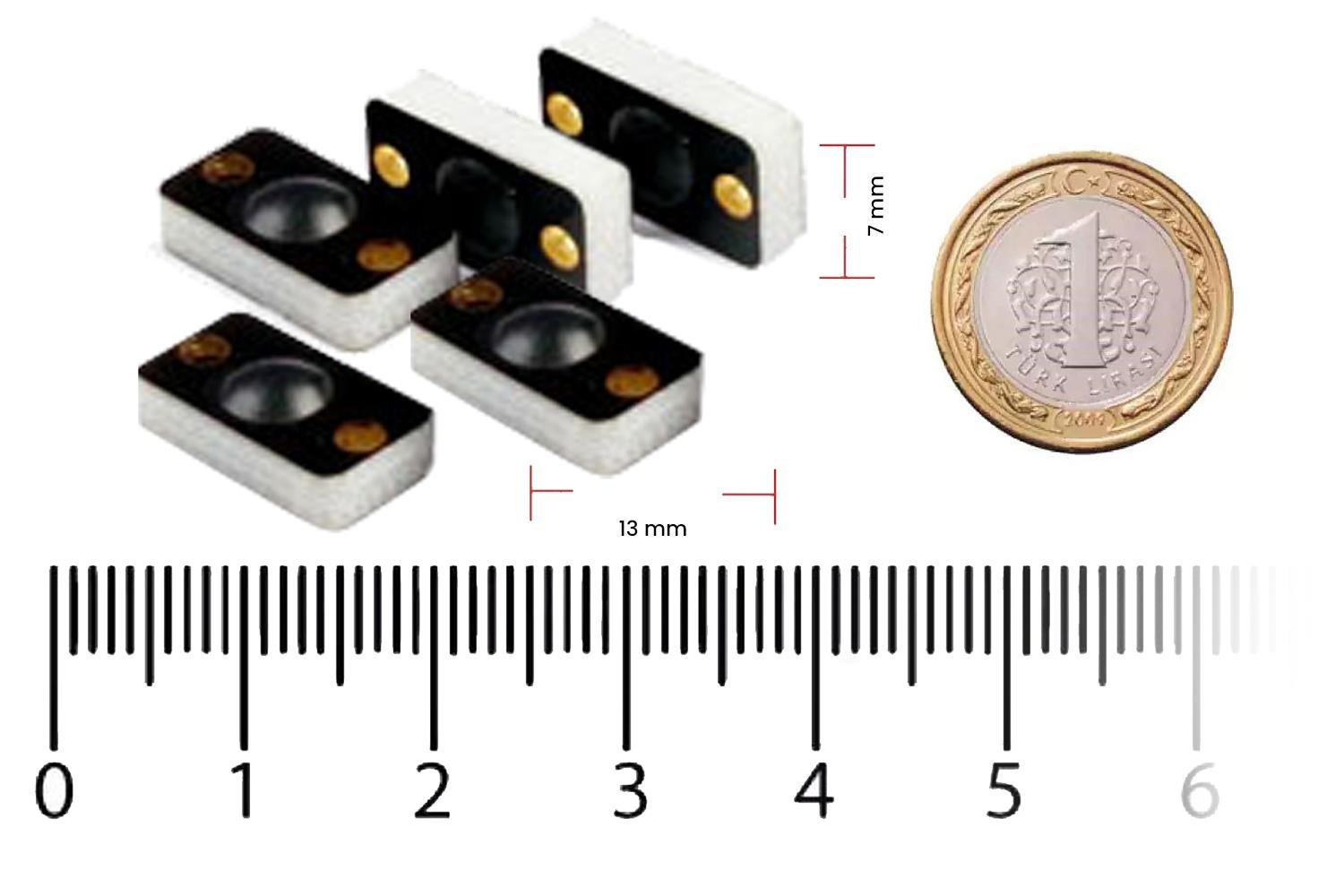

- The UHF Retail Tag is 13x7mm in size, compliant with EPC class 1 Gen 2 / ISO18000-6C protocols and offers a reading range of up to 2.5 meters on metal objects.
- It operates between -20°C and +100°C.
Dear customers, the RFID tags you have reviewed are not encoded. Coding etc. technical processes belong to you. Please pay attention to this when ordering. You can contact for detailed information.
| Feature |
Description |
| Protocol |
EPC global Gen2，ISO/IEC 18000-6C |
| Operating Frequency |
(EU)865～868MHz / (US)902～928MHz |
| Chip |
Alien Higgs-3 |
| Memory |
EPC global Gen2，ISO/IEC 18000-6C |
| Applicable Surface Areas |
Metal Surfaces |
| Label Material |
FR4(PCB) |
| Dimensions |
13x7mm, (Hole: D2mm*2) |
| Thickness |
Without 3 mm internal hump, with 3.8 mm internal hump |
| Weight |
0.7 grams |
| Operating Temperature |
-20℃ to +100℃ |
Blog Post
UHF RFID On-Metal Tags: Reliable Tracking on Metal Surfaces
RFID technology has transformed tracking and identification across industries. However, traditional RFID tags struggle on metal surfaces due to signal interference. UHF RFID on-metal tags solve this problem with specially designed antennas that perform efficiently on metal.
Compact and High-Performance
Operating in the 860–960 MHz range, these compact yet durable tags offer long read ranges and high accuracy, even in harsh environments. Their small size makes them ideal for diverse applications—from manufacturing and logistics to healthcare and asset tracking.
Versatile Industrial Use
These tags are used for tracking assets, inventory, tools, machinery, computers, and metal containers. They are designed for embedding into small recesses on metallic parts and work reliably within a temperature range of -20°C to +100°C. When mounted on metal, they offer a read range of up to 0.85 meters with a fixed reader.
Boost Efficiency with Metal-Compatible RFID
With their compact design, strong performance, and resistance to metal interference, UHF RFID on-metal tags are a powerful tool for improving visibility, accuracy, and operational efficiency across sectors.
