RFGATE RGR02 UHF RFID Development Kit - USB
RFGATE RGR02 UHF RFID Development Kit - USB

RFGATE RGR02 UHF RFID Development Kit - USB (RF02)

Brand : RFgate
Discount Rate : %5 Discount
Price : $189.00  + VAT
Discounted : $179.00  + VAT

The RGR02 V4 RFID Reader Module operates within the 865-868 MHz frequency range. Despite its compact design, this device delivers high performance and can read up to 2 meters with a suitable antenna. It functions within a temperature range of -20°C to +70°C. It is commonly used in fixed installation projects such as data terminals, apparel, libraries, livestock, and retail applications.
Add to Favorites
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Fixed readers are installed and remain in one place. It is mounted on locations such as wall, table, portal, panel. It is divided into types as single port, two ports, four ports, six ports and eight ports. A wide reading area can be obtained by mounting UHF antennas to these ports.  Fixed readers combined with UHF antennas are called integrated readers. Since they are mostly single ported, they are integrated with a single antenna. Integrated readers, which provide great space savings, are more frequently used indoors where there is not much density. There are also models designed for car park systems.

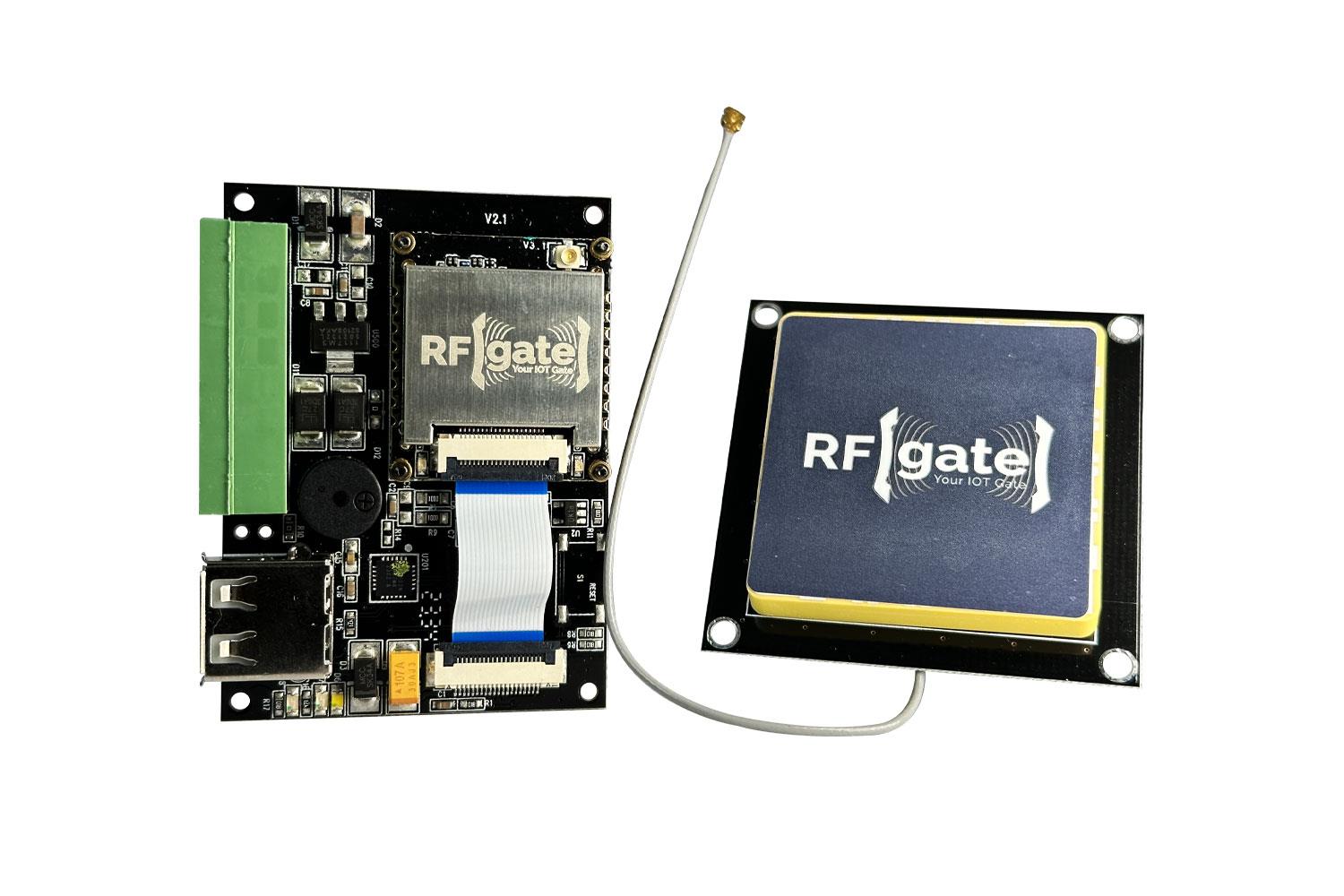

RFGATE RGR02 UHF RFID Development Set - USB Port

RFGate RGR02 UHF RFID Development Kit is shipped with antenna. With its affordable cost, it allows projects to be tested quickly. You can read from high distances with this reader where software suitable for the project can be developed.
RFGate RGR02 UHF RFID Development Kit is used in areas such as textile, retail, apparel, inventory tracking, warehouse, logistics, tracking challenging materials and objects.


Features





  • RFgate has reached the highest levels of read and write performance with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C protocol.
  • It operates in the range of 865-868MHz.
  • The RFgate RGR02 can provide readings from 4 metres with the appropriate tag and antenna.
  • With its affordable cost, you can realise the demos of your projects with this reader.
  • It operates between -20°C to +70°C.
  • It has a low power operating principle for both reading and coding.
Özellikler
 		 Detaylar

Architecture ARM9 677MHz processor, Linux, 512 MBytes DDR3 RAM, 4 GBytes Flash
Supported RFID Tag Protocols EPC Gen 2; ISO 18000-6c
Reader Protocols 8 Alien Reader Protocols (now), LLRP (coming) firmware upgradeable
LAN Protocols TCP/IP, NTP, DNS, DHCP, SNMP
Intensive reader management Intensive Reader Mode, automatic event triggering and event management
Power Power over Ethernet or rugged universal AC-DC power converter; 100-240 VAC, 50/60Hz
Reader Power (with PoE) 31.5 dBm
Contact LAN TCPI/IP (RJ-45), RS-232 (DB-9 F), USB Host, USB Console
Antennas 4 reverse polarity TNC monostatic ports; circular or linear polarisation; near and far field compatible
General Purpose I/O Optically isolated. 0-24VDC rail. 4 inputs. 8 outputs (1500mA capacity).
Dimensions (L) 20.2 cm x (W) 19.1 cm x (D) 2.8 cm
Weight 0.85 kg
Operating Temperature -20°C to +50°C (-4°F to +122°F)
Environmental Assessment IP53
LED Indicators Power, CPU, Read, Sniff, Ant 0-3
Software SDK Java, .NET, Ruby APIs
RoHS EU 2002/95/EC compliant
