RFGate Rfid Metal Üstü Palet Takip Etiketi 80x20mm

RFGate Rfid Metal Mounted Pallet Tracking Tag 80x20mm (PCB1292030)

Name: RFGate Rfid Metal Mounted Pallet Tracking Tag 80x20mm
Brand: RFgate
Price: 81.59 try

Brand : RFgate

Price : $1.99 + VAT

Order via Phone

Add to Favorites

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Recommend

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These tags, which are the cheapest, are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.

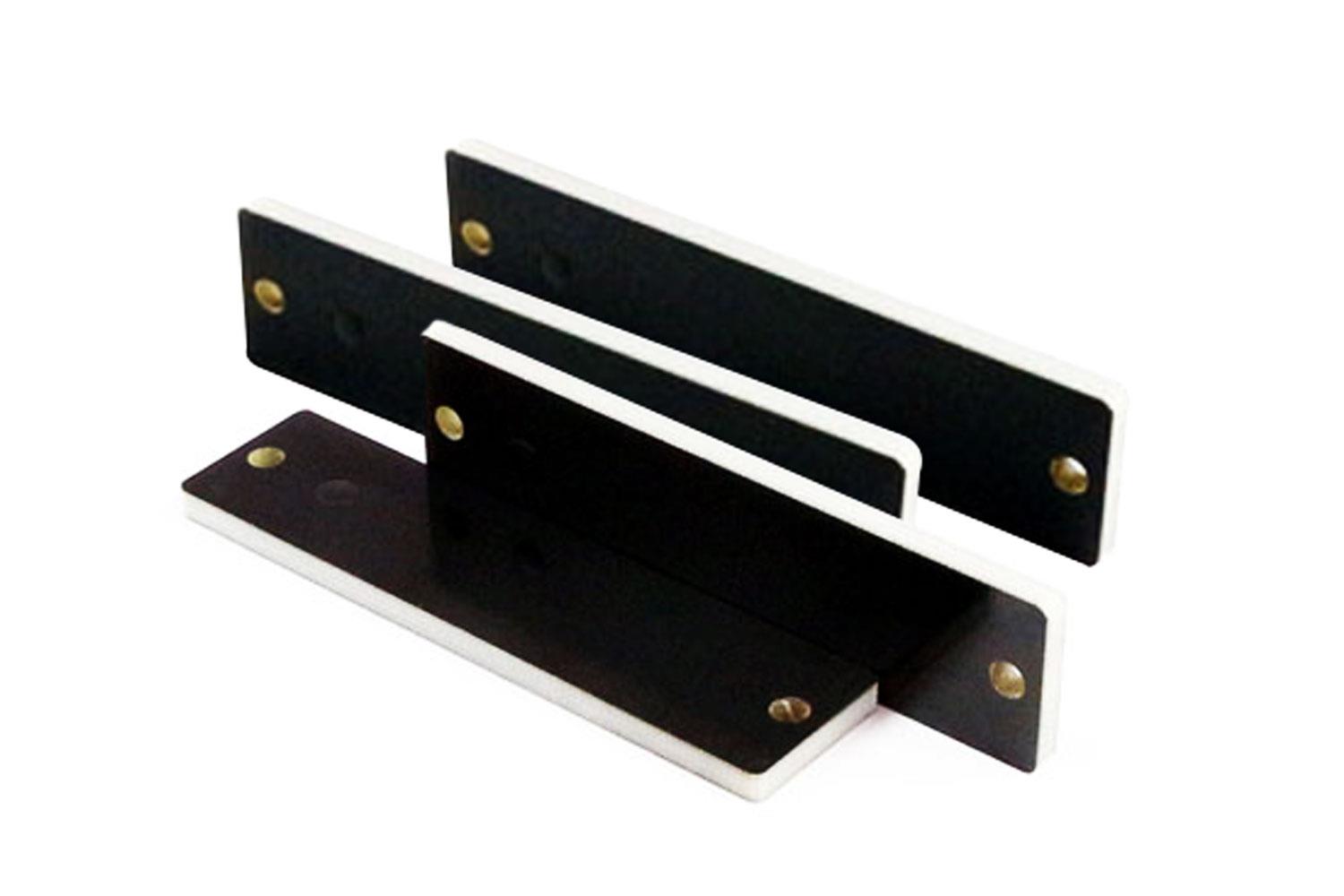

RFGate Rfid Metal Mounted Pallet Tracking Tag 80x20mm

RFGATE Rfid Metal Over Pallet Tracking Tag 80x20mm

Datasheet - RFGate Rfid On Metal Pallet Tracking Tag 80x20mm

Areas of Use

The RFGate Rfid On-Metal Pallet Tracking Tag is the ideal choice for RFID asset tagging and its typical application is in pallet tracking.

Features

RFGate's volume-oriented structure equipped with Alien Higgs-3 chip that delivers industry-leading performance a uhf anti metal rfid tag.
Designed for asset monitoring application, IP68, can be used outdoors.
With two mounting holes that provide the flexibility of different mounting requirements, the label can be soldered to the object to ensure that it will not fall off.
As one of the asset management tags, it improves inventory efficiency and accuracy with its excellent read distance and stable performance.
When RFID is tagged on the pallet for pallet tracking application, people can track real-time information on the pallet and do inventory quickly.
Manufactured with FR4/PCB materials for high reliability and durability in any environment. Resists metal, water and other harsh conditions.
It operates between -40°C and +100°C.

Dear customers, the RFID tags you have reviewed are not encoded. Coding etc. technical processes belong to you. Please pay attention to this when ordering. You can contact for detailed information.

Feature	Description
Protocol	EPC global Gen2，ISO/IEC 18000-6C
Operating Frequency	US 902-928MHz, EU 865-868MHz
Chip	Alien Higgs-3
Memory	EPC 96bits (up to 480bits), USER 512bits, TID64bits
Applicable Surface Areas	Metal Surfaces
Label Material	FR4(PCB)
Dimensions	80x20mm (Hole: D4mm)
Thickness	3.5 mm
Weight	12.0 grams
Operating Temperature	-40℃ to +100℃

Blog Post

UHF RFID On-Metal Tags: Reliable Tracking on Metal Surfaces

RFID technology has transformed tracking and identification across industries. However, traditional RFID tags struggle on metal surfaces due to signal interference. UHF RFID on-metal tags solve this problem with specially designed antennas that perform efficiently on metal.

Compact and High-Performance

Operating in the 860–960 MHz range, these compact yet durable tags offer long read ranges and high accuracy, even in harsh environments. Their small size makes them ideal for diverse applications—from manufacturing and logistics to healthcare and asset tracking.

Versatile Industrial Use

These tags are used for tracking assets, inventory, tools, machinery, computers, and metal containers. They are designed for embedding into small recesses on metallic parts and work reliably within a temperature range of -20°C to +100°C. When mounted on metal, they offer a read range of up to 0.85 meters with a fixed reader.

Boost Efficiency with Metal-Compatible RFID

With their compact design, strong performance, and resistance to metal interference, UHF RFID on-metal tags are a powerful tool for improving visibility, accuracy, and operational efficiency across sectors.
