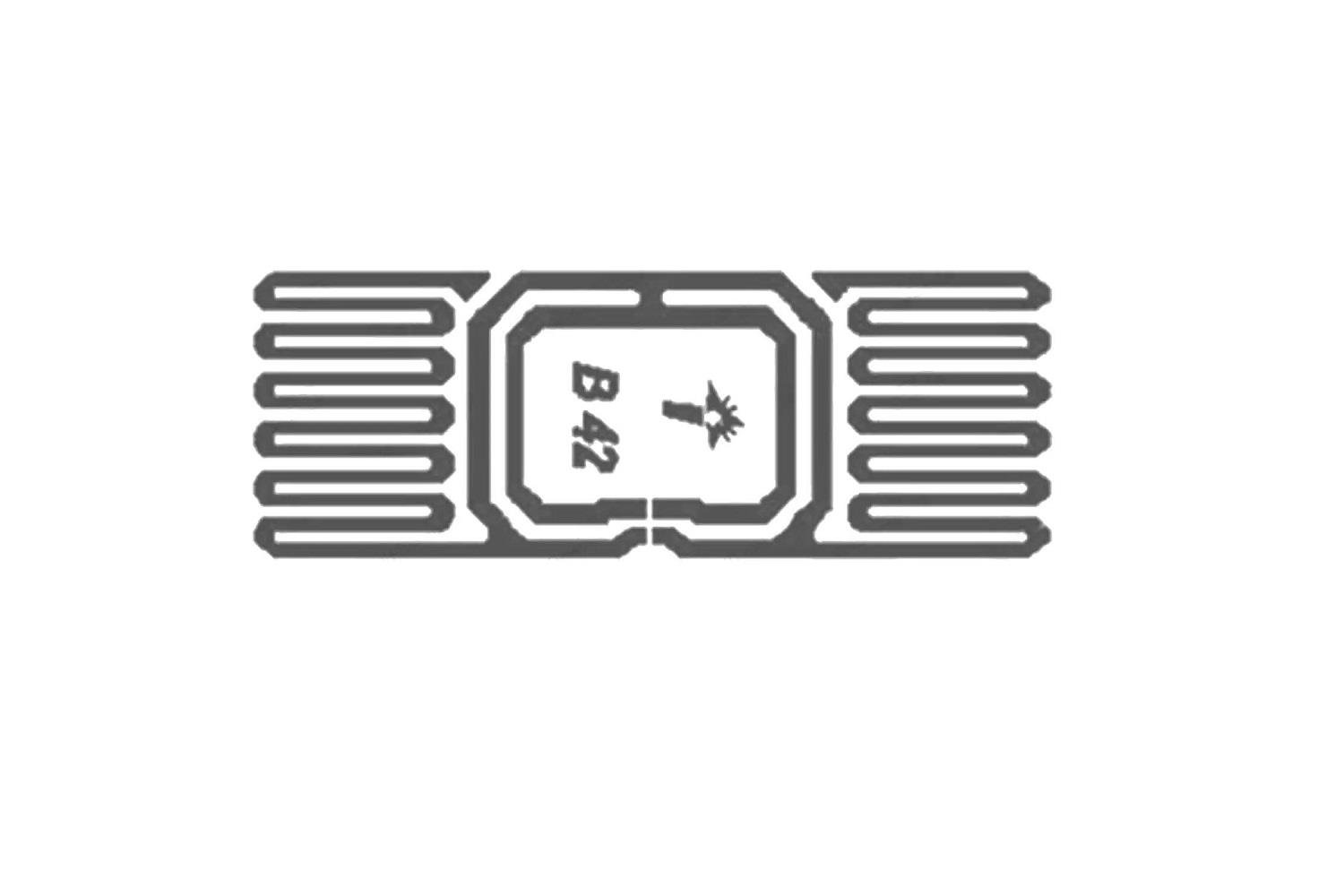

B42 Transparent UHF RFID Tag

Passive tags are the most cost-effective tags. Passive tags do not have their own power supply. They work with the power of RFID readers. These cheapest tags are the most widely used tags. The vast majority of RFID systems are created with passive tags. It has a very wide range on a sectoral basis.

Impinj B42 Transparent UHF RFID Tag

B42 Transparent UHF RFID Tag; B42, which has EPC 96/496 Bits, User Top to 688 Bits, TID 32 Bits memory, can be read from 1.5 metres with suitable reader and antenna. It is a product produced for textile, inventory, warehouse and logistics, archive, vehicle tracking and general use.

Features

• It is powered by the Monza 4 chip with Impinj's volume-oriented structure.
• It has reached the highest levels of read and write performance with the EPCglobal Class 1 Gen 2 (ISO 18000-6C) protocol.
• It operates in the range of 860-960 MHz.
• B42, which has EPC 96/496 Bits, User Top to 688 Bits, TID 32 Bits memory, can be read from 1.5 metres with a suitable reader and antenna.
• It can be used on wooden, plastic, glass and cardboard surfaces.
• Designed in 26 mm x 12 mm dimensions.
• It operates between -40°C and +85°C.
• It has a low power operating principle for both reading and coding.
• It has a special security feature for cloning and copying attempts.

Dear customers, the RFID tags you have examined are not coded. Coding etc. technical operations belong to you. Please pay attention to this when ordering. You can contact for detailed information.
