B2 Beacon: Internet of Things (IoT) Applications

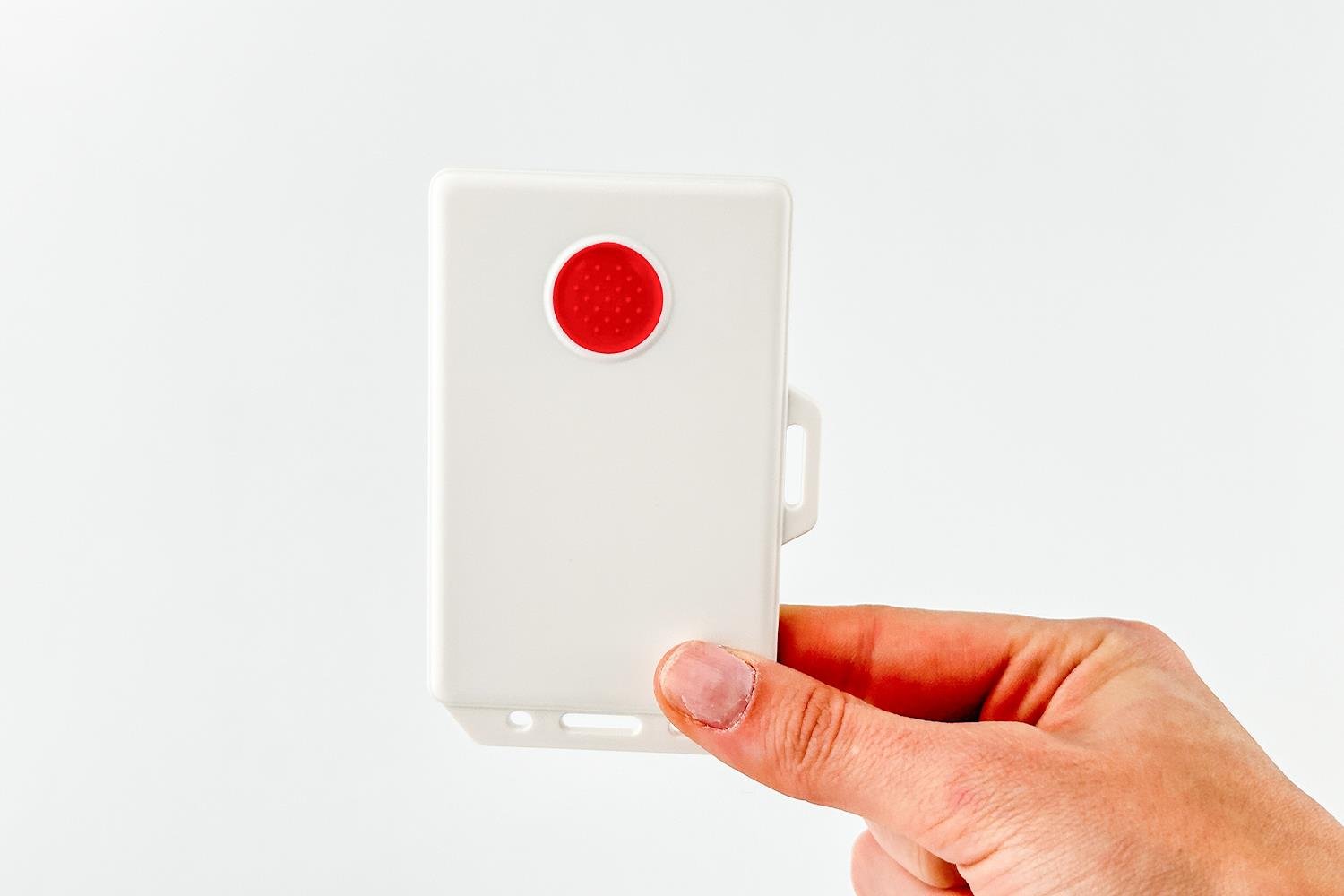

The B2 is an intelligent badge that comes with an SOS button and a high-capacity battery. It enables you to combine your ID card and BLE communication in a single compact device. With remote reminders and alert responses, this smart wearable badge provides geographic boundary alerts and restriction entry alerts through a series of LED notifications and an audible warning mechanism.
The smart wearable badge is a versatile tool that can be assigned to individuals for participation tracking and access control purposes in various environments such as schools, exhibitions, and events. It offers visitor analysis and access control to restricted areas or resources, significantly optimizing personnel management for organizations.
The versatility of the B2 Bluetooth badge is enhanced by its structural design for ultrasonic sources and IP66 waterproofing features, ensuring reliable performance even in the most challenging environments. Additionally, its robust RF performance allows it to reach advertising distances of up to 150 meters in open spaces.
Applications
B2 Beacon applications include: Exhibitions and Events, Retail and Stores, Conferences and Seminars, Smart Buildings and Campuses, Tourism and Museums, Logistics and Warehousing.
| Feature |
Value |
| Main Chip |
Nordic nRF52810 |
| Bluetooth |
Bluetooth 4.2 (hardware compatible with Bluetooth 5) |
| Range |
Up to 150 meters (in open space without obstacles) |
| Size |
85.6mm x 54.1mm x 5.2mm |
| Weight |
20g (with battery) |
| Material |
ABS |
| Waterproof |
IP67 |
| Color |
White |
| Mounting |
Suspend, Neck chain, Label button, Mechanical button |
| LED |
Single red LED |
| Sensor |
3-axis accelerometer sensor (optional) |
| RFID |
13.56MHz MIFARE Classic EV1 RFID (Customizable) |
| Operating Temperature |
-20°C / +60°C |
| Storage Temperature |
10°C / +25°C |
| Humidity |
0% ~ 95% (non-condensing) |
Dear customers, the RFID tags you are reviewing are not encoded. Encoding and other technical procedures are your responsibility. Please consider this when placing an order. For detailed information, you can contact us.
Blog Post
What is the Internet of Things (IoT)?
The Internet of Things (IoT) connects physical devices via the internet to share and analyze data. Examples include smart thermostats, wearable tech, and industrial automation tools, all equipped with sensors for real-time decision-making.
History
Introduced by Kevin Ashton in 1999, IoT’s roots trace back to early computer networks. It gained traction in the 2000s with Wi-Fi, RFID, and cloud computing.
Benefits
Automation & Convenience: Saves time by handling tasks automatically.
Efficiency: Enhances operations in industry and agriculture.
Energy Saving: Prevents waste via smart systems.
Security: Improves safety with IoT-powered surveillance.
Use Cases
Smart Homes: Control lighting, security, and climate remotely.
Industrial IoT: Used in factories and logistics.
Healthcare: Enables remote monitoring and emergency alerts.
Transport: Powers smart traffic systems and autonomous vehicles.
Agriculture: Supports irrigation and climate monitoring.
Challenges
Security: Devices are vulnerable to hacking.
Privacy: Risk of unauthorized data usage.
Compatibility: Devices may not integrate well across brands.
Future Outlook
With 5G, AI, and machine learning, IoT will grow faster and smarter. It’s set to reshape how we live and work, making it vital for both consumers and industries to stay informed.
