ACS ACR1252U NFC Reader - Writer

ACS ACR1252U NFC Reader - Writer Datasheet

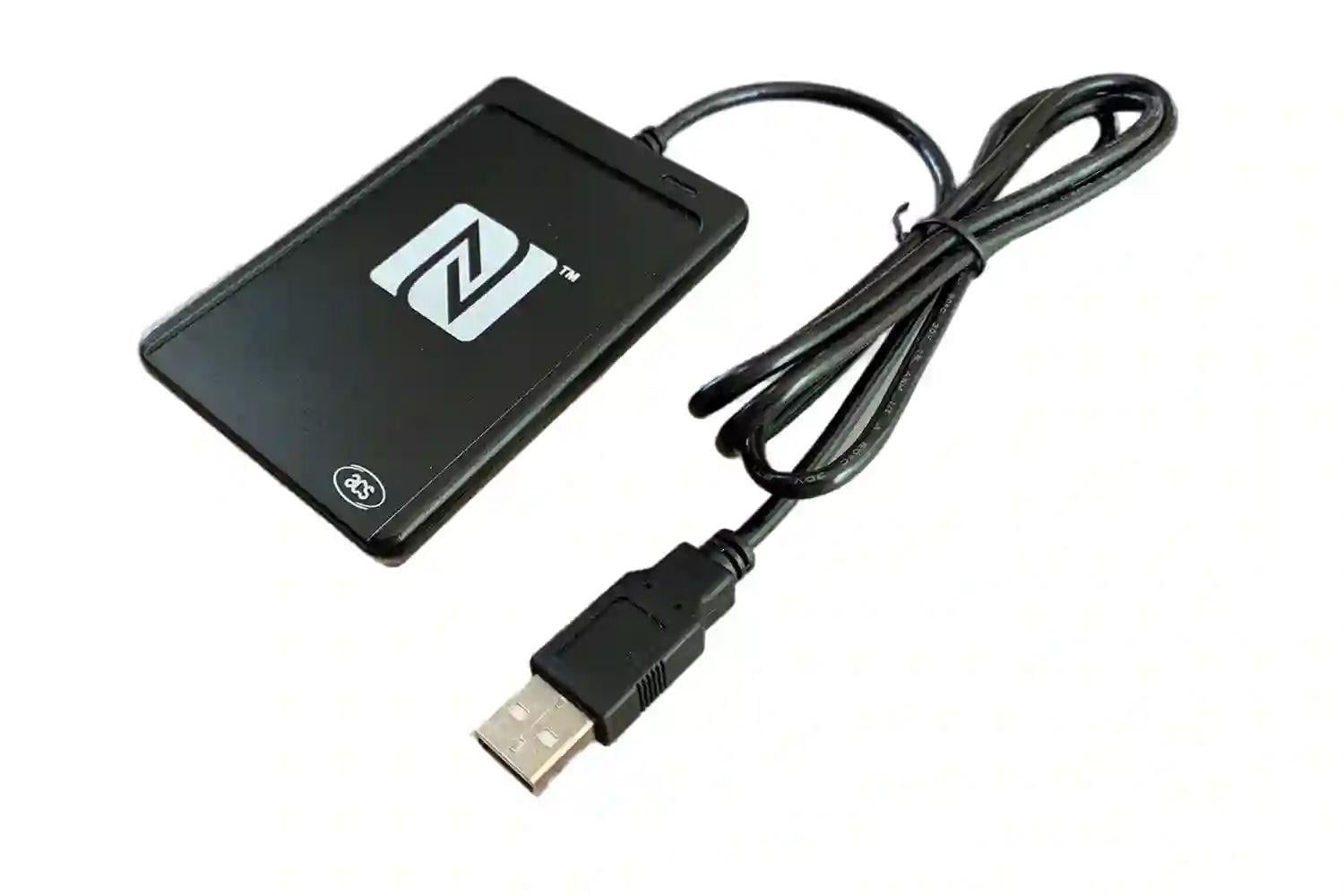

The ACR1252U USB NFC Reader is an NFC Forum-certified PC-linked reader developed based on 13.56 MHz contactless technology. It features a SAM (Secure Access Module) slot that can be used with a SAM card for key diversification and mutual authentication, providing high-level security in contactless transactions.

It supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and ISO 18092-compliant NFC tags. Additionally, it supports other NFC devices with access speeds up to 424 Kbps and a proximity operating distance of up to 50 mm (depending on the type of tag used).

The ACR1252U comes with an optional stand to hold the smart card reader at an optimal angle, allowing users to easily tap contactless cards or NFC-enabled devices onto the ACR1252U.

• USB 2.0 Full Speed Interface

• CCID Compliance

• USB Firmware Upgradeability

• Smart Card Reader: Read/write speeds up to 424 kbps

• Built-in antenna for contactless tag access, with card reading distance up to 50 mm (depending on tag type)



• Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags



• Supports MIFARE 7-byte UID, MIFARE Plus, and MIFARE DESFire



• Built-in anti-collision feature (only 1 tag is accessed at any time)



• One ISO 7816-compliant SAM slot (Class A)



• NFC Support: NFC Reader/Writer Mode



• Application Programming Interface: Supports PC/SC and CT-API



• Peripherals: User-controllable bi-color LED and user-controllable buzzer

• SAM Slot

*SDK is priced separately.

Specifications

Note: This product is not suitable for direct use by end-users who do not have detailed technical knowledge and equipment.
